WEITERE INFORMATIONEN

• DETAILS

• Dino-Lite range:
  Dino-Lite Special lighting

• LIGHTING

• Light/ LED type:

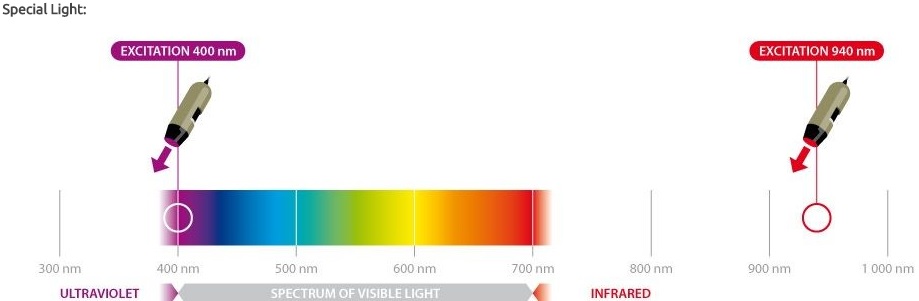

  ~395 nm UV + ~940 nm Infrared
• Number of LEDs:
  4+4
• LED on/off switchable:
  Yes
• Infrared filter:
  No
• Diffuser available:
  No
• Emission filter:
  No
• Polarizer:
  No

• OPTICS

• Magnification:
  20-200x
• Macro zoom:
  No
• Working distance:
  Standard
• Lens type:
  Glass with anti-reflection coating

• SENSOR

• Sensor type:
  CMOS
• Resolution:
  1.3 Megapixel (1280x1024)
• Maximum frame rate:
  30 fps

• COMPATIBILITY

• Interface:
  USB 2.0
• Operating system:
  Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
• Included software:
  DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Supported image formats (Windows):
  BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Supported video formats (Windows):
  WMV, FLV, SWF
• Supported image formats (MacOS):
  JPEG, PNG
• Supported video formats (MacOS):
  MOV
• Imaging standards:
  DirectShow, UVC

• HOUSING

• Housing material:
  Composite/ plastic housing
• Magnification lock:
  Yes
• Dimensions:
  10.5cm (L) x 3.2cm (D)
• Weight:
  105g
• Cable length:
  1.8m

• FEATURES

• Special feature:
  No
• Measurement:
  Yes
• Calibration:
  Yes
• Microtouch sensor:
  Yes
• ESD safe:
  No

• INFORMATION

• Package contents:
  Microscope, Carry pouch, Software CD, Open and closed cap, Calibration target, User manual
• Warranty information:
  2 years European warranty
• Regulatory approval:
  CE, FCC, ROHS
• Price range:
  €376,80
• Working distance/ field of view/ depth of field:



  MAGNIFICATION RATE	WORKING DISTANCE	FIELD OF VIEW(X)	FIELD OF VIEW(Y)	DEPTH OF FIELD
  Listed values may differ slightly				Unit = mm
  20	51.7	25.1	20.1	4
  30	24.1	16.8	13.4	2
  40	11.0	12.6	10.1	1.6
  50	3.8	10.1	8.0	1.17
  60	-0.6	8.4	6.7	-
  200	-0.4	2.5	2.0	0.28
  210	0.6	2.4	1.9	-
  220	1.7	2.3	1.8	-
  230	2.8	2.2	1.7	-
