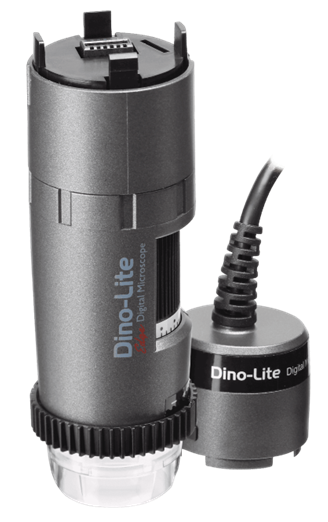

    AF4515T-FUW

    Information über Arbeitsabstand und Sichtfeld

    M WD FOV (x) FOV (y) DOF

    20

    60.2

    19.5

    15.6

    2.5

    30

    33.5

    13

    10.4

    1.8

    40

    20.9

    9.8

    7.8

    1.5

    50

    13.9

    7.8

    6.3



    60

    9.7

    6.5

    5.2



    70

    7.1

    5.6

    4.5

    1.0

    80

    5.5

    4.9

    3.9



    90

    4.5

    4.3

    3.5



    100

    4.1

    3.9

    3.1



    110

    4

    3.6

    2.8



    120

    4.1

    3.3

    2.6



    130

    4.5

    3

    2.4



    140

    5

    2.8

    2.2



    150

    5.6

    2.6

    2.1



    160

    6.3

    2.4

    2



    170

    7.1

    2.3

    1.8



    180

    8

    2.2

    1.7



    190

    8.9

    2.1

    1.6



    200

    9.9

    2

    1.6



    210

    10.9

    1.9

    1.5



    220

    11.9

    1.8

    1.4

    0.1



    M = magnification rate / Vergrößerungsrate

    WD = working distance / Arbeitsabstand

    FOV = field of view / Sichtfeld

    DOF = depth of field / Schärfentiefe

    Unit / Einheit = mm
